SPS ONE 1100 UK
UPS
Description

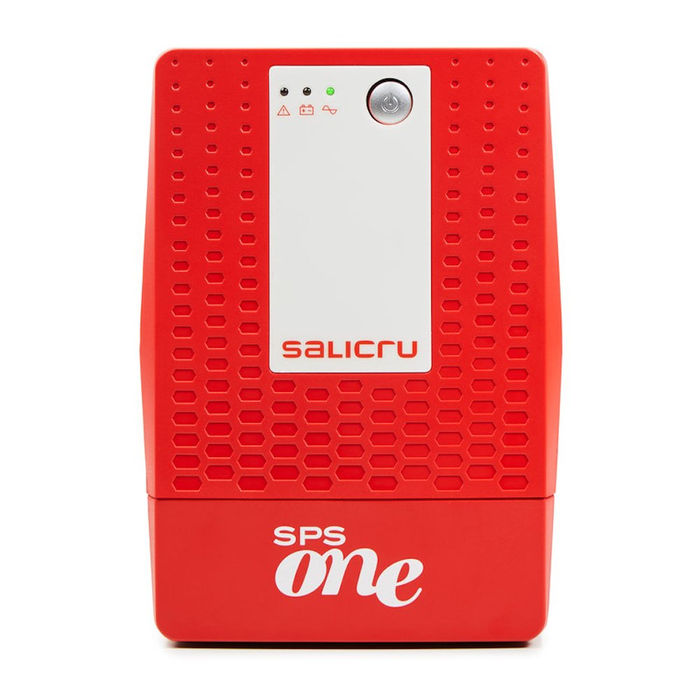

An uninterruptible power supply (UPS) in a mini tower format with Line-interactive topology, Salicru’s SPS ONE series provides battery backup (with pseudo sine wave inverter output) and overload protection. During power failures, SPS ONE devices provide battery backup to enable computer systems to shut down properly and protect against data loss and electronics damage. Operation through automatic voltage regulation (AVR) to correct small voltage fluctuations without having to use the battery, thus extending its life. The AVR function is essential in areas where voltage fluctuations occur frequently.
It features a UPS/PC communication interface via USB with HID protocol, which allows parameter setting, UPS control and shutdown or hibernation of the computer through the USB port. Compatible with Windows, Linux and Mac operating systems. UPS management and monitoring software is also available for closing files/applications for Windows, Linux and Mac families. Free and downloadable from www.salicru.com.
The SPS ONE series is available in 1100,1500 and 2000 VA power ratings.
Technical Specifications
TECHNOLOGY - Line-interactive
FORMAT - Tower
INPUT
Rated voltage - 220 V / 230 V / 240 V AC
Voltage range - Until 162 V ÷ 290 V
Stabiliser - AVR Buck / Boost
Rated frequency - 50 / 60 Hz
Auto detection of frequency - Yes
Protection - Thermal re-arm or fuse (depending on model)
OUTPUT
Rated voltage - 220 V / 230 V / 240 V AC
Voltage accuracy (battery mode) - ±10%
Power (VA) - 1100
Waveform (battery mode) - Simulated sinewave
Frequency - 50 / 60 Hz ± 1 Hz (1)
Transfer time - 2 / 6 ms
Socket type - UK
BATTERY
Battery type - Enclosed batteries Pb-Ca without maintenance, sealed, design life 3-5 years
Recharge time - 4-6 hours until 90% capacity
User replaceable battery - Yes
Back up time - Up to 20 minutes
Battery replacement alarm - Yes
COMMUNICATION
Ports - USB HID
Monitoring software - Compatible with Windows, Linux, Unix and Mac
Downloadable from - support.salicru.com
INDICATIONS
Type - LED
Operating modes - Normal / Stabilisation (AVR) / Battery
Mains present - Green LED
Alarm - Output battery mode, low battery (back up time), charger failure and overload
Audible - Every 10 s for battery operation. Every 1 s for overcharge. Continuous for fault 2 s for battery replacement.
Failure - Red LED
OTHER FUNCTIONS
Cold start (start-up from batteries) - Yes
Automatic restart - Yes, after the end of back up time
GENERAL
Operating temperature - 0º C ÷ + 40º C
Relative humidity - Utill 90%, without condensation
Maximum operating altitude - 2,400 masl
Acoustic noise at 1 metre - < 40 dB
STANDARDS
Safety - EN-IEC 62040-1
Electromagnetic compatibility (EMC) - EN-IEC 62040-12
Operation - EN 62040-3
Quality and environmental management - ISO 9001 & ISO 14001
DIMENSIONS
Depth (mm) - 320
Width (mm) - 130
Height (mm) - 182
WEIGHT
Weight (kg) - 10,4
(1) Battery mode
